Onboard Air with 2 1/2 Gallon Air tank W/Air Compressor Air Tank Fittings

Original price was: $411.10.Current price is: $369.99.

Onboard Air Kit with 2 1/2 Gallon Air tank W/Air Compressor Air Tank Fittings Pressure Switch Relay Electrical Connectors Required Accessories Pacbrake

  • Compressor features:
    A copper wire wound permanent magnet motor
    Oil-less design
    Sealed bearings
    PTFE piston ring
    Cast aluminum cylinder head
    Hard anodized aluminum cylinder and aluminum sleeve.
Price Match Guarantee

Price Match Guarantee

We’ll match the price of a product found at another retailer.

Free Shipping

Free Shipping

Offering free shipping on most items.

Home Phone Icon

Talk to an Expert

Product Info:

electrical connectors and required accessories.

Each Onboard Air System comes complete with:
HP325 Series 12V DC compressor (Part Number HP10143).
2 1/2 Gallon steel air tank (Part Number HP10013).
Pressure switch.
Electrical connectors and all applicable accessories.

Compressor Specifications:
(Part Number HP10143)-12 VDC.
100 percent (1 Hour at 100 PSI) duty cycle.
1/4 HP. Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm.
Weight is 5.5 lbs.

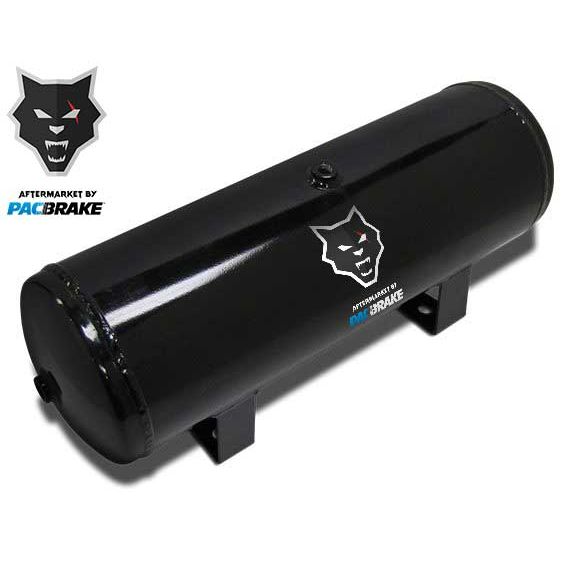

Air Tank Specifications (HP10013)-2 1/2 gallon capacity.
5-3/8' NPT ports. Rust inhibitor applied to inside of tank.
Max working pressure 150 PSI.
Size is 21.0 inch x 6.9 inch x 8.9 inch (LxWxH).
Weight is 9.8 lbs.
Welded on mounting brackets..

Additional Attributes:

GTIN: 00628480000657
Air Tank Weight: 9.8
Capacity: 2.5
Compressor Weight: 5.5
Prop 65 Y/N: Y
Volts: 12

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order


Quantity of Each: 1
Package UOM: KT
Dimension: 25 x 12 x 10 inches
Weight: 25 PG
