Onboard Air with 1/2 Gallon Air tank W/Air Compressor Air Tank Fittings

Original price was: $355.54.Current price is: $319.99.

Onboard Air Kit with 1/2 Gallon Air tank W/Air Compressor Air Tank Fittings Pressure Switch Relay Electrical Connectors Required Accessories Pacbrake

  • Compressor features:
    Copper wire wound permanent magnet motor.
    Oil-less design sealed bearings.
    PTFE piston ring.
    Cast aluminum cylinder head.
    Hard anodized aluminum cylinder and aluminum sleeve.
Price Match Guarantee

Price Match Guarantee

We’ll match the price of a product found at another retailer.

Free Shipping

Free Shipping

Offering free shipping on most items.

Home Phone Icon

Talk to an Expert

Product Info:

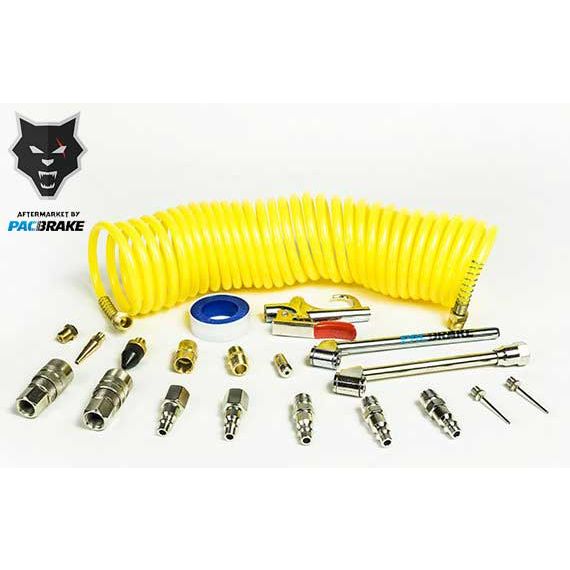

Electrical connectors and all applicable accessories.

Compressor Specifications:
Part Number HP10143 -12 VDC.
100 percent (1 Hour at 100 PSI) duty cycle.
1/4 HP.
Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm.

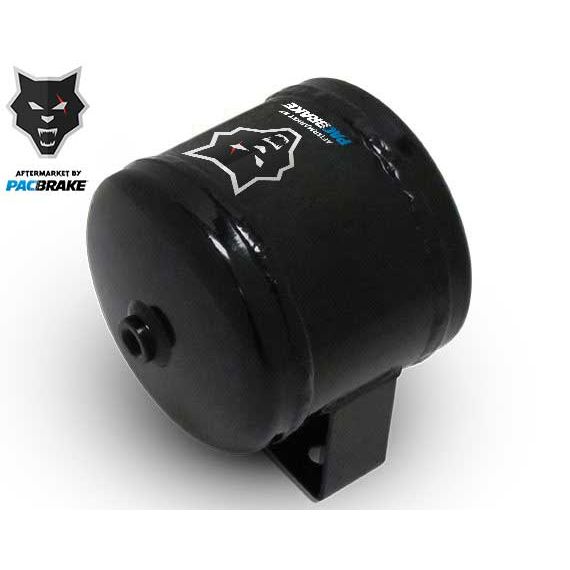

Weight is 5.5 lbs. Steel Air Tank Specifications (C11940)-0.5 gallon capacity.
2-1/4 inch NPT ports.
Rust inhibitor applied to inside of tank.
Max working pressure 150 PSI.
Size is 6.4 inch x 5.5 inch x 6.5 inch (LxWxH).
Weight is 3.4 lbs.
Welded on mounting brackets.

Additional Attributes:

GTIN: 00628480000640
Capacity: 0.5
Compressor Weight: 5.5
Prop 65 Y/N: Y
Volts: 12

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order


Quantity of Each: 1
Package UOM: KT
Dimension: 10 x 10 x 10 inches
Weight: 16 PG
