HP20327-QM DUAL CHANNEL (2ND GEN) WIRELESS AIR SPRING CONTROLS (QUICK MOUNT)
Original price was: $877.77.$789.99Current price is: $789.99.
HP20327-QM DUAL CHANNEL (2ND GENERATION) WIRELESS AIR SPRING CONTROLS (QUICK MOUNT)
- A breakthrough in air suspension control! Welcome to the Second Generation of Pacbrake Wireless. Now with 3x the signal strength for quick and reliable connection even in the back country!
Price Match Guarantee
We’ll match the price of a product found at another retailer.
Free Shipping
Offering free shipping on most items.
Talk to an Expert
Call 877-921-1531
Product Info:
Operate your air springs from the comfort of your cab with wireless air spring controls from Pacbrake! Pacbrake Wireless Controls are a universal fit. They fit the frame of any vehicle work with any air spring on the market. They can also be easily installed with common mechanic tools – no lines or wires to the cab and no drilling required!

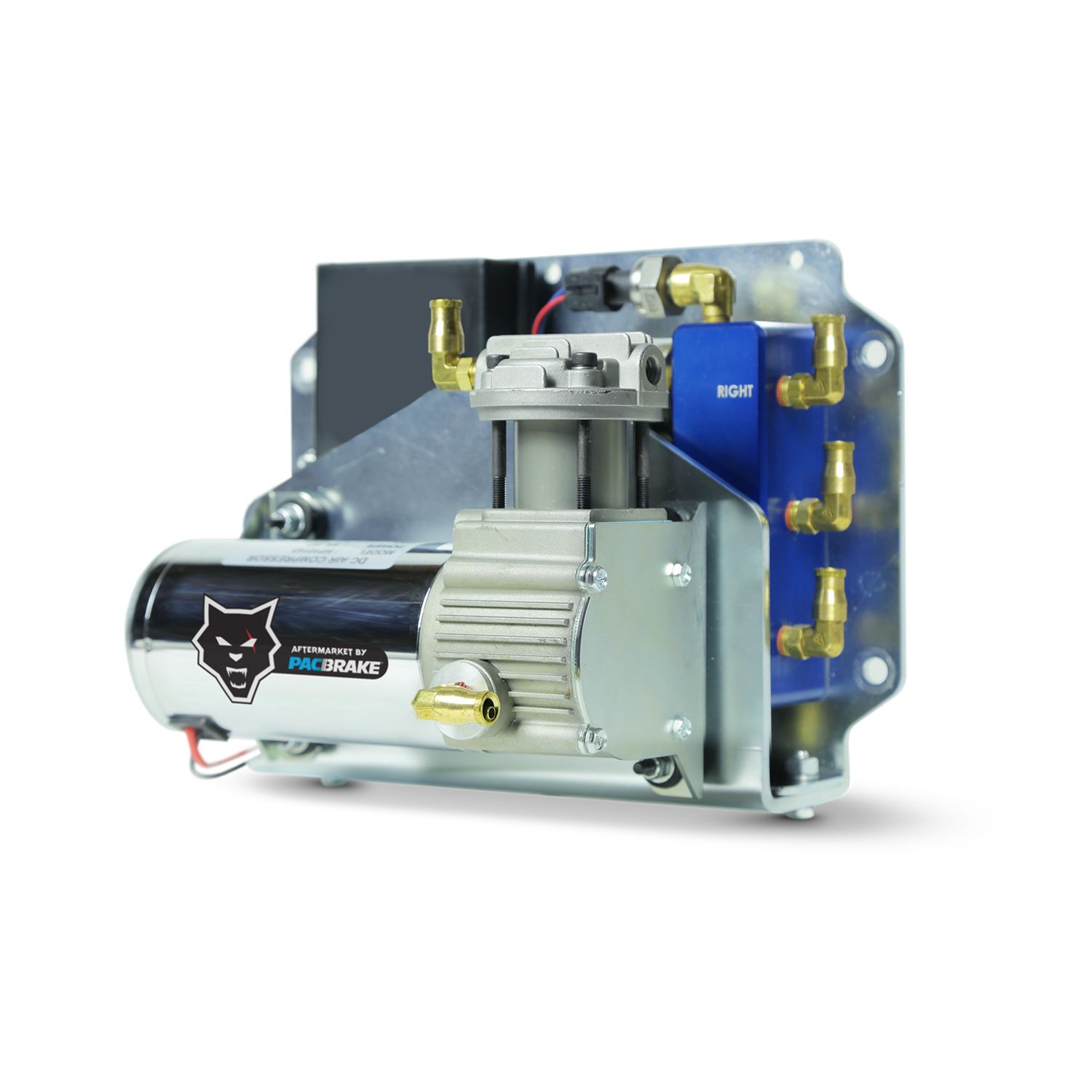

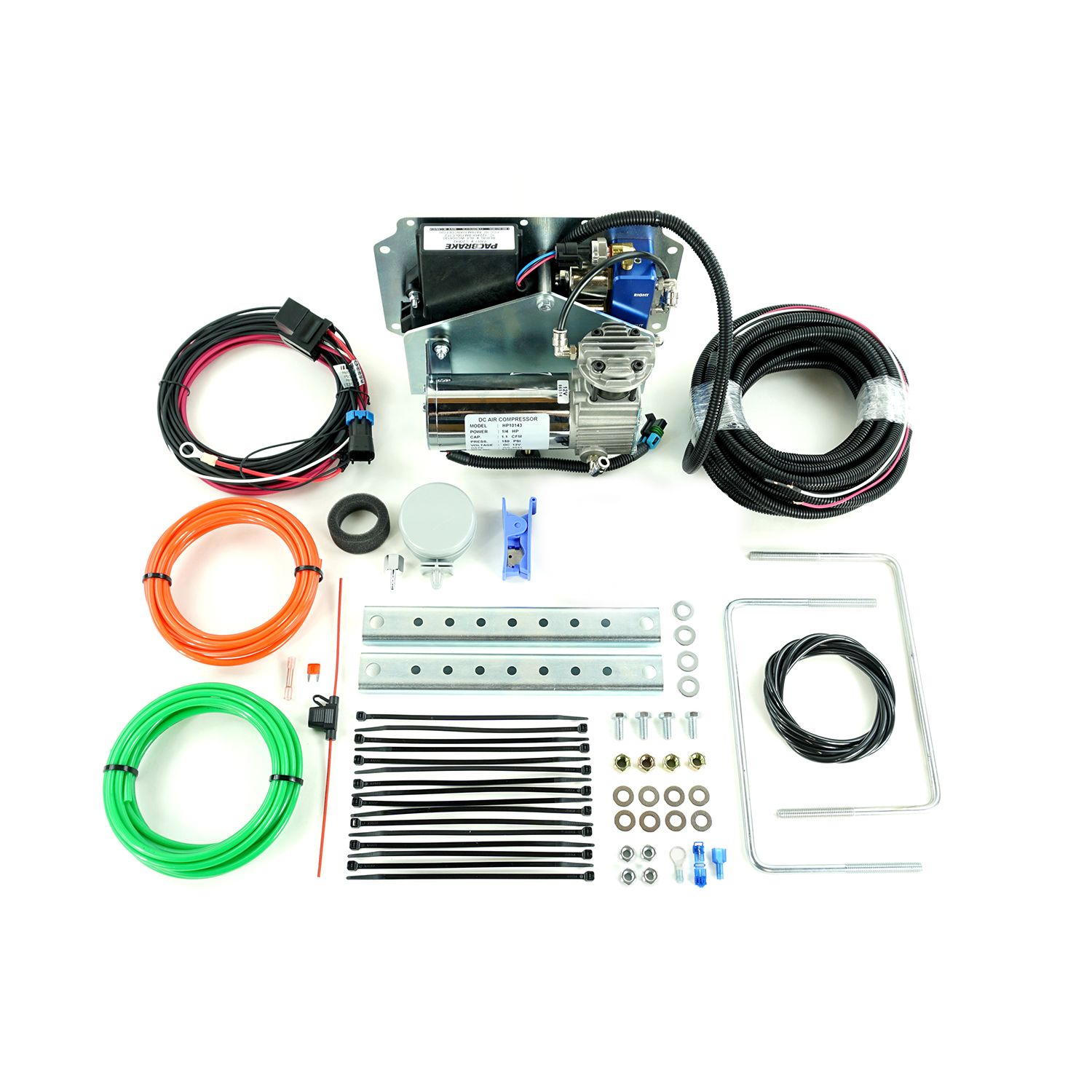

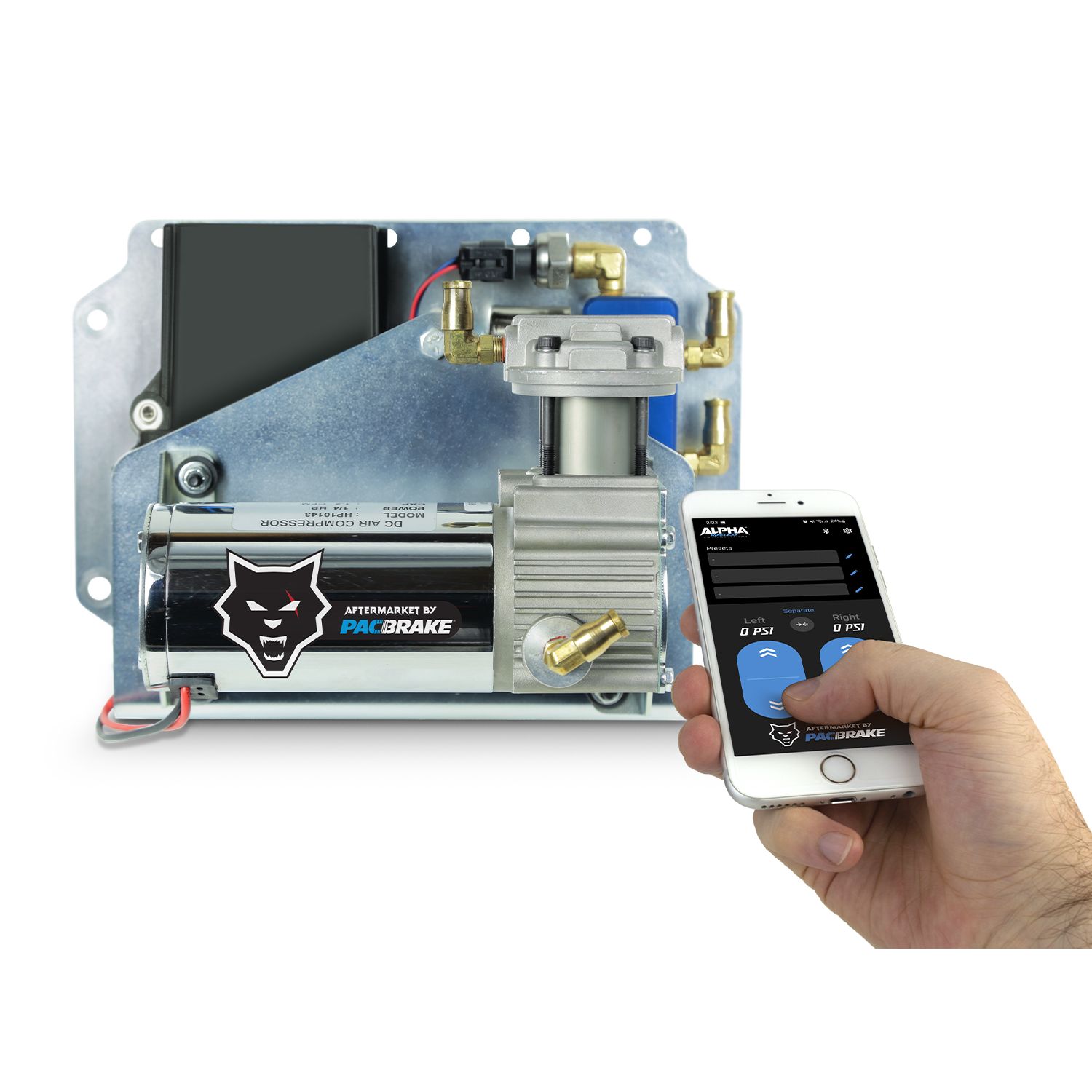

The kit comes with everything required for install: Pacbrake Wireless Controls air board assembly (controller, solenoid block, air compressor, pressure sensors and harnesses), Phone app (Compatible with Apple iOS 10.3+ or Android 4.3+ mobile devices), Air lines, pressure connectors and mounting hardware.
Compressor features:
Copper wire wound permanent magnet motor
Oil-less design
Sealed bearings
PTFE piston ring
Cast aluminum cylinder head
Hard anodized aluminum cylinder and aluminum sleeve
Compressor Specifications:
Part Number HP10143-12 VDC:
12 VDC
33% (20 min @ 100 PSI) Duty Cycle
1/4 HP
8.7 inch x 4 inch x 6.2 inch (LxWxH) / 221mm x 102mm x 158mm
5.5 lbs
Features and Benefits:
Dual Path Control – adjust your air springs independently to adjust for uneven loads.
3x Signal Strength – gone are any frustrations associated with connecting phone and controller!
Waterproof and debris resistant – Demand a Pacbrake IP67 rated controller.
Quick Mount Kit – comes with Quick Mount bracket for effortless bolt-on installation.
Military grade solenoids – designed to withstand extreme cold, heat, moisture, and salt spray. does not require cellular service to operate.
Additional Attributes:
GTIN: 00628480004044
Fill Type: Dual Channel
Mounting Hardware Included?: Yes
Prop 65 Y/N: Y
Prop_65_Warning: CALIFORNIA WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Weight: 5.5
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: KT
Dimension: 10 x 10 x 22 inches
Weight: 24 PG
