HP10633 (Basic) 24V HP625 Series Heavy Duty Air Compressor Kit

Original price was: $635.53.Current price is: $571.98.

HP10633 (Basic) 24V HP625 Series Heavy Duty Air Compressor Kit – Vertical Pump Head Basic Components Of The Unloader Block Assembly Does Not Include The Pre-Built Wiring Harnesses Pacbrake

  • Get quick and effortless inflation power at your fingertips with Pacbrake’s robust heavy duty Basic HP625 Series compressor kits!
Price Match Guarantee

Price Match Guarantee

We’ll match the price of a product found at another retailer.

Free Shipping

Free Shipping

Offering free shipping on most items.

Home Phone Icon

Talk to an Expert

Product Info:

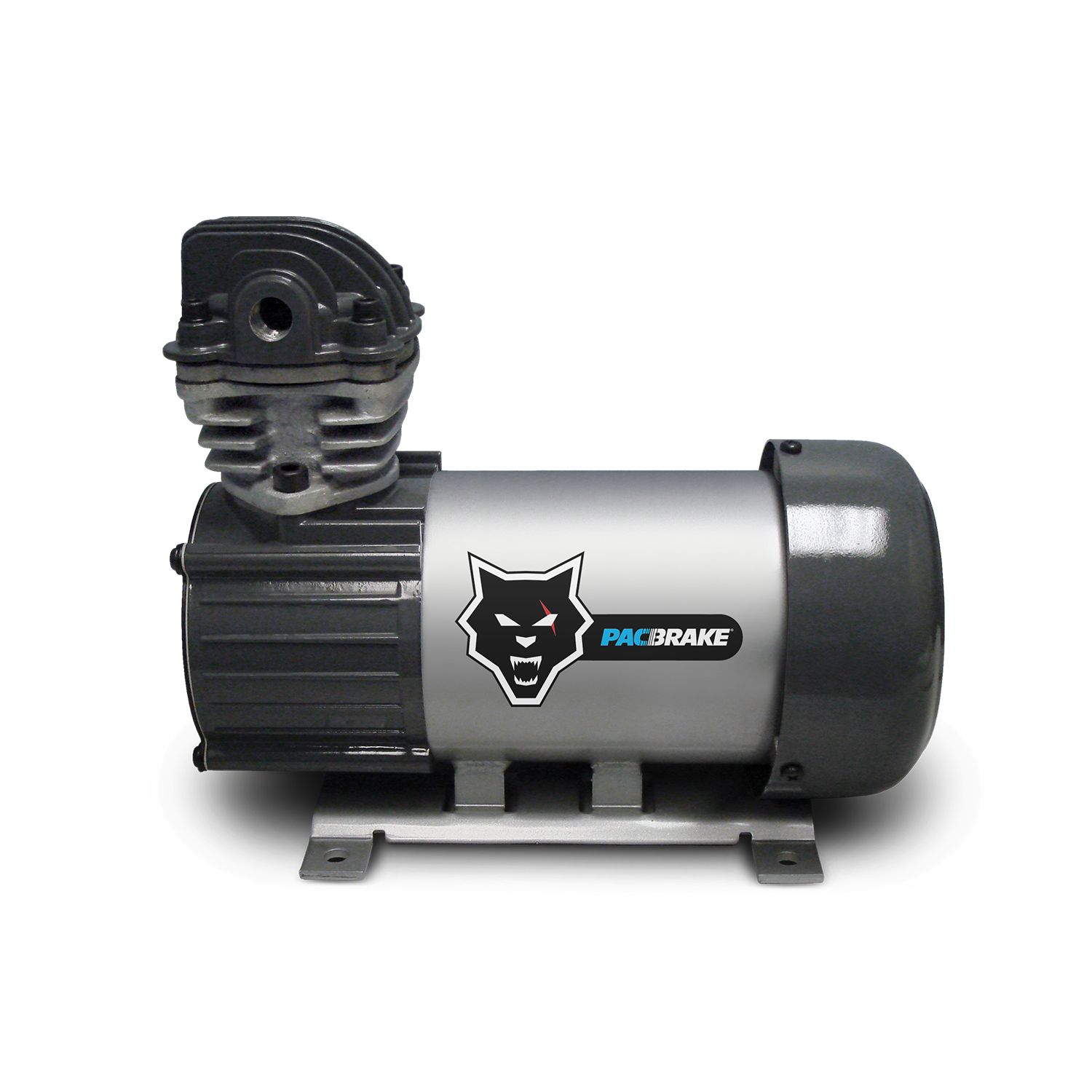

Pacbrake's HP625 Series (Basic) Air Compressor kits have a 100% duty cycle (60 minutes @ 100 psi) and are offered in 24 VDC Vertical Head configuration (HP10633) or 12 VDC Vertical Head configuration (HP10632) or 12 VDC Horizontal Head configuration (HP10631).

These 3/4 horsepower compressors have an oil-less design, sealed bearings, a PTFE piston ring, a copper wire wound permanent magnet motor and a cast steel cylinder with a hard anodized aluminum sleeve.

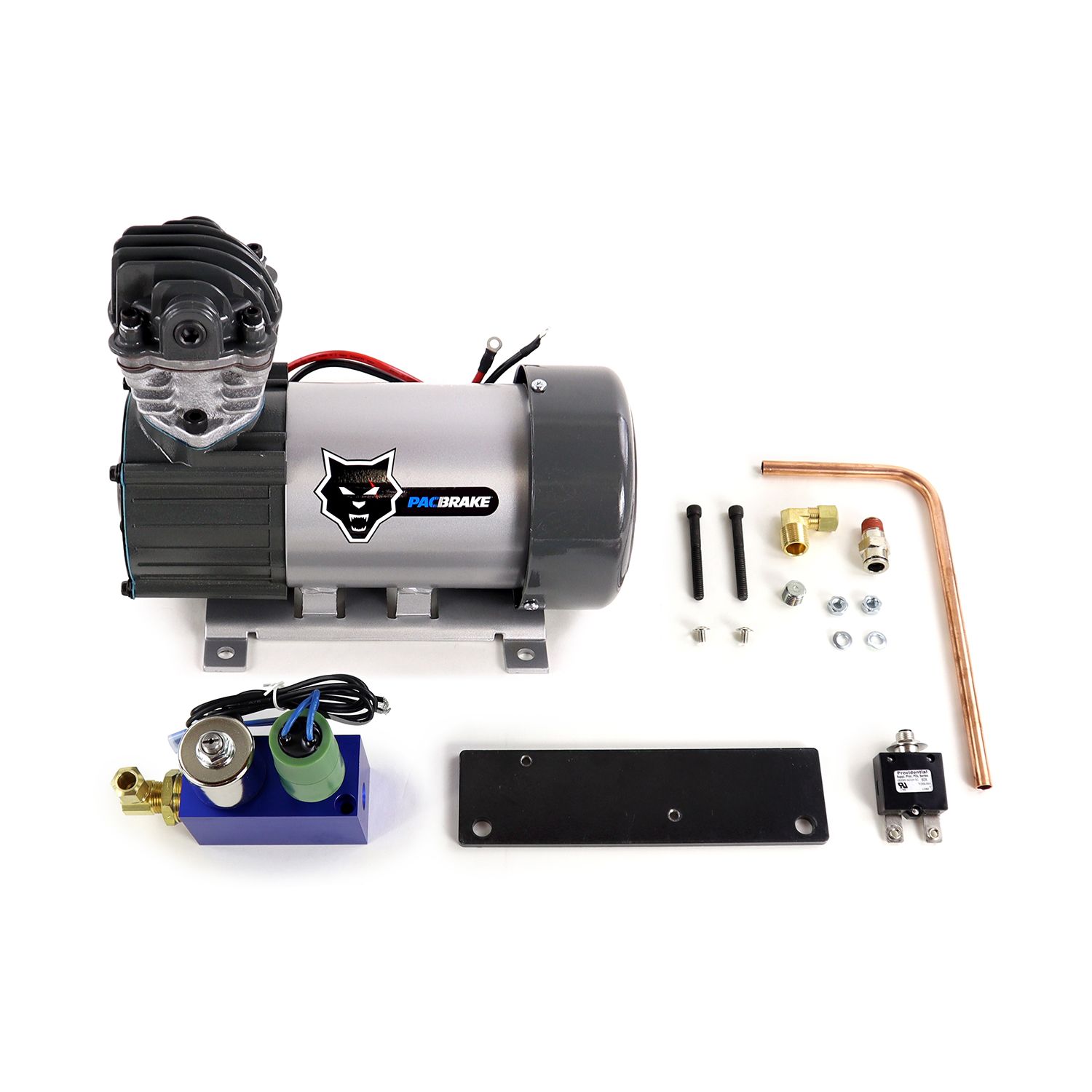

Kit Details:

Pacbrake's HP625 Series 24VDC Air Compressor – Gunmetal Grey finish
Vertical Head configuration
Includes compressor installation hardware and unloader block assembly for use with air tanks
Does not include any pre-built harnesses (See Premium Kits: HP10628 / HP10629)
HP625 Series Compressor Specifications

11.5 inch x 6 inch x 9.5 inch (LxWxH) / (293mm x 153mm x 242mm)
18.5 lbs (8.39kg)

Additional Attributes:

GTIN: 00628480000763
Mounting Bracket Included: Yes
Duty Cycle: 100%
Horsepower: 3/4
Max Working Pressure: 150
Pre-Built Wiring Harness Included?: No
Prop 65 Y/N: Y
Volts: 24
Weight: 18.5

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: KT
Dimension: 12 x 8 x 11 inches
Weight: 24 PG
