HP10628 (Premium) 12V HP625 Series Heavy Duty Air Compressor Kit
Original price was: $724.36.$651.92Current price is: $651.92.
HP10628 (Premium) 12V HP625 Series Heavy Duty Air Compressor Kit – Horizontal Pump Head
- Get quick and effortless inflation power at your fingertips with Pacbrake’s robust heavy duty Premium HP625 Series compressor kits!
Price Match Guarantee
We’ll match the price of a product found at another retailer.
Free Shipping
Offering free shipping on most items.
Talk to an Expert
Call 877-921-1531
Product Info:

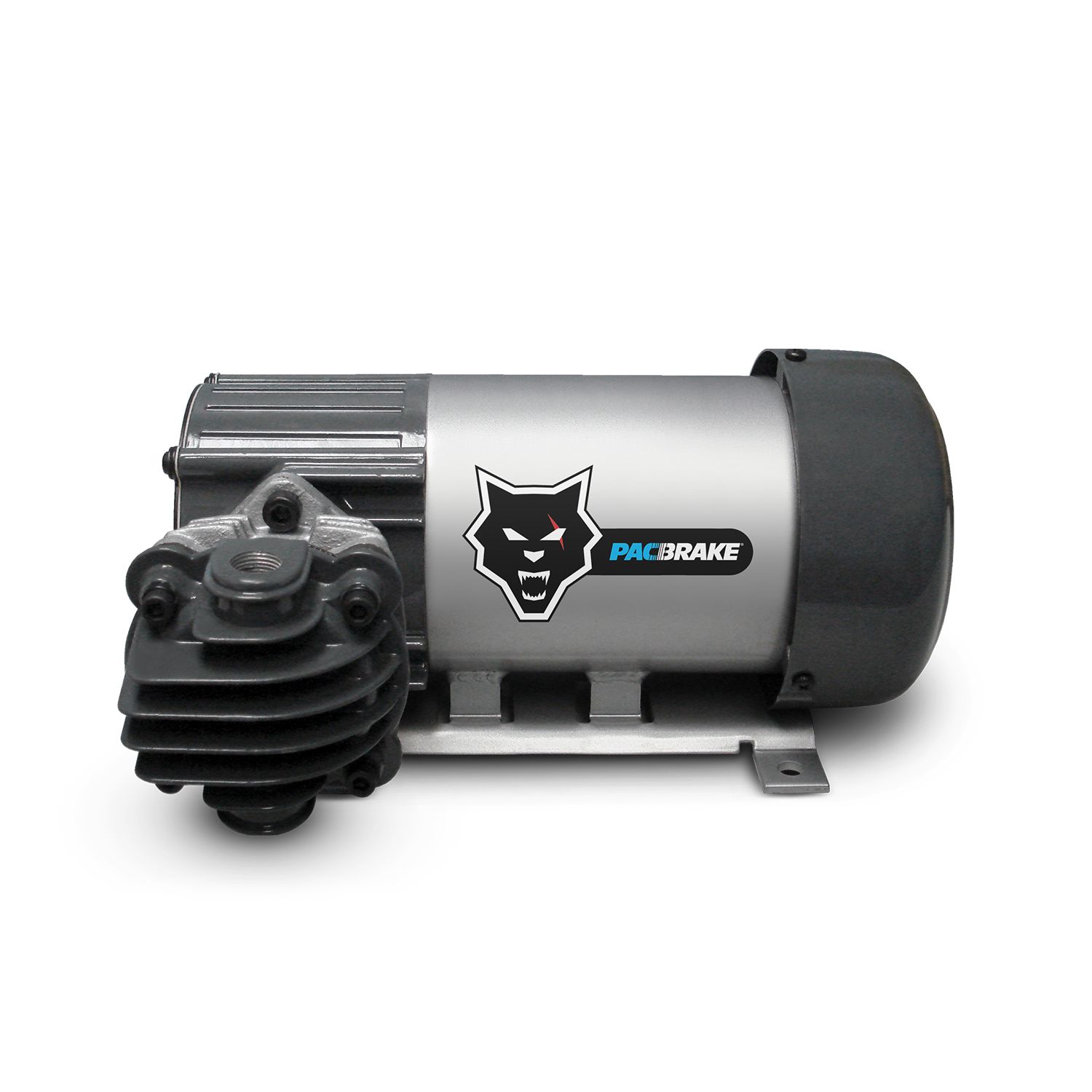

Pacbrake's HP625 Series (Premium) Air Compressor kits have a 100% duty cycle (60 minutes @ 100 psi) and are offered in either 12 VDC Vertical Head configuration (HP10629) or 12 VDC Horizontal Head configuration (HP10628), and 24 VDC Vertical Head configuration (HP10630).
These 3/4 horsepower compressors have an oil-less design, sealed bearings, a PTFE piston ring, a copper wire wound permanent magnet motor and a cast steel cylinder with a hard anodized aluminum sleeve.

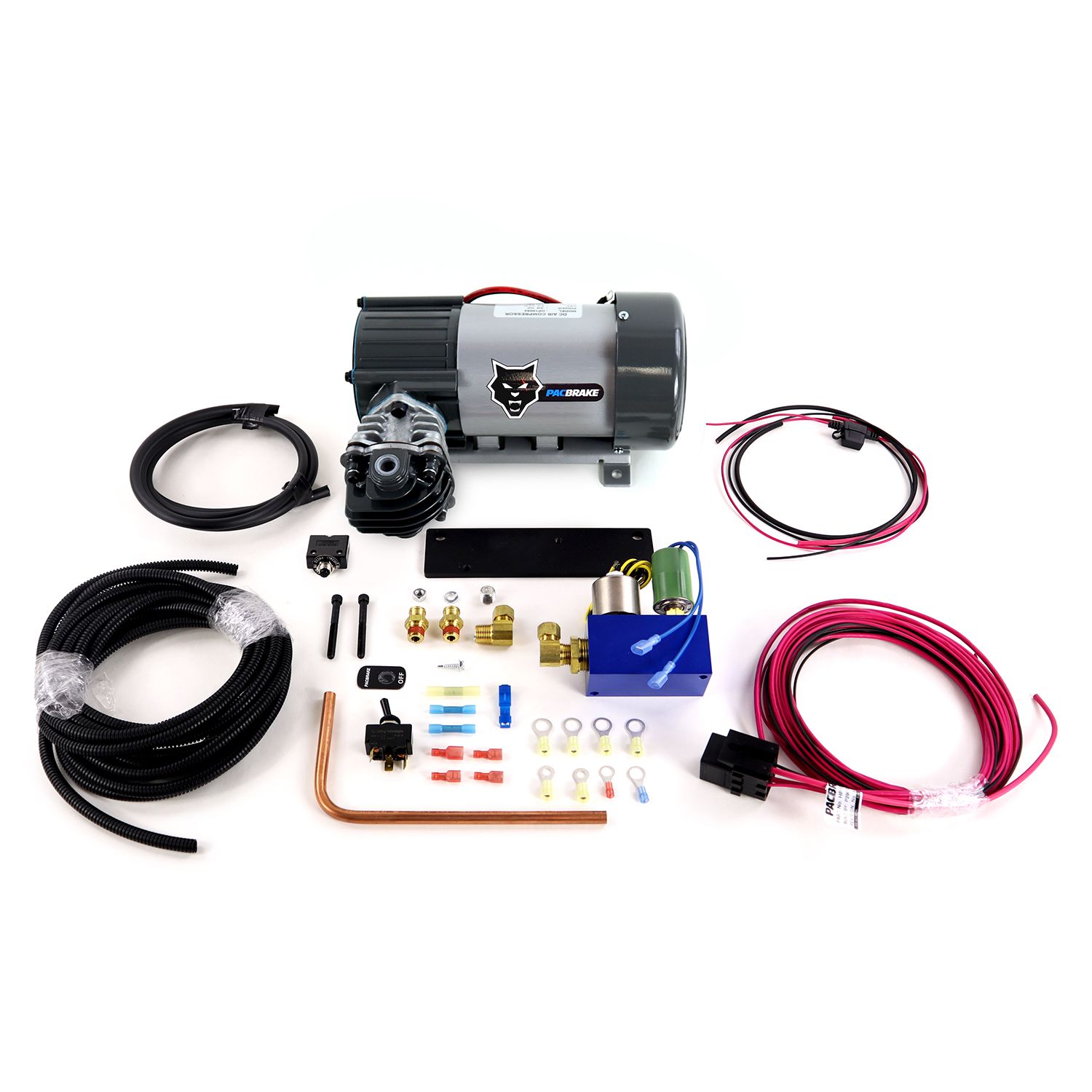

Kit Details:
Pacbrake's HP625 Series 12VDC Air Compressor – Gunmetal Grey finish
Horizontal Head configuration
Includes all compressor installation hardware and premium pre-built harnesses
This kit also includes an unloader block assembly for use with air tanks
(Basic kit version are also available: Horizontal Head HP10631 / Vertical Head HP10632)
HP625 Series Compressor Specifications:
11.5 inch x 6 inch x 9.5 inch (LxWxH) / (293mm x 153mm x 242mm)
18.5 lbs (8.39kg)
PLEASE NOTE: HP625 series compressors require the use of the unloader assembly (included in this Premium kit) for use with an air tank.
Additional Attributes:
GTIN: 00628480000718
Mounting Bracket Included: Yes
Duty Cycle: 100%
Horsepower: 1/4
Max Working Pressure: 150
Pre-Built Wiring Harness Included?: Yes
Prop 65 Y/N: Y
Volts: 12
Weight: 18.5
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: KT
Dimension: 18 x 16 x 10 inches
Weight: 29 PG
L5939
