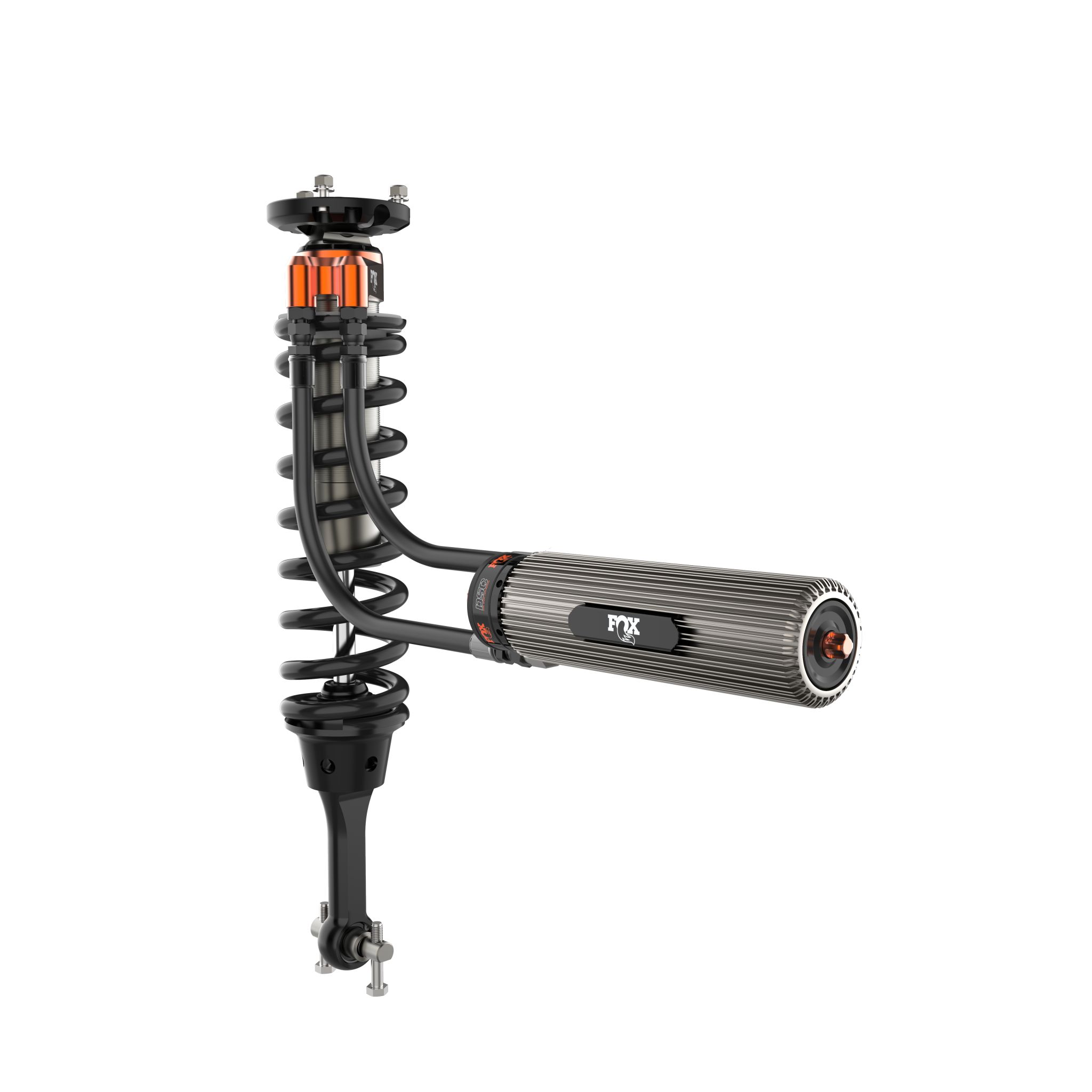

FACTORY RACE SERIES 3.0 INTERNAL BYPASS COIL-OVER (PAIR) – ADJUSTABLE
$3,699.95
Application specific valving to maximize performance.
- Performance Tuned Specifically For Raptor
- Finned External Reservoir System Dissipates Heat Fast
- Quick Switch Compression And Rebound Adjusters
- Live Valve Terrain Adaptive Technology
- Black Anodized CNC Machined Aluminum Components
Price Match Guarantee
We’ll match the price of a product found at another retailer.
Free Shipping
Offering free shipping on most items.
Talk to an Expert
Call 877-921-1531
Product Info:
FOX Factory Race Series 3.0 Internal Bypass shocks for the 14th generation Ford F-150 deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through aseries of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. The Factory Race Series shocks also stay cool by utilizing a Recirculating Reservoir Bridge. The bridge circulates shock fluid between the finned external reservoir and body using checked ports. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies.The DSC adjuster allows you to dial in your F-150 for load, environment, and driving style.FOX Internal Bypass shocks deliver the support and confidence you need while driving Mach-3 through rugged terrain. Experience race-bred performance next time you leave the pavement.
Additional Attributes:
GTIN: 00711745592889
Adjuster Type: DSC – Dual Speed Compression
Body Diameter (in): 3
Body Material: Aluminum
Bottom Mount: Bar Pin
Bottom Mount (p/n): 213-63-012
California Proposition 65: ! WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Compressed Length (in): 17.25
Extended Length (in): 22.49
Fox Catalog: TRUCK
Label Name: Kit: 21-ON Ford F150, 4WD, Front Coilover, Internal Bypass, 3.0 Series, Recirc R/R, DSC, 2.5″ LIFT
Prop 65 Y/N: Y
Reservoir Type: Remote
Series: Factory Race
Top Mount: OEM
Travel (in): 5.24
Type: Coil-Over Internal Bypass
Extended Information:
Emissions : 1
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
Dimension: 39.2500 x 20.3750 x 11.2500 inches
Weight: 81.0000 PG
605-01-334_REV-B_COLOR_WEB_ONLY
